2020 Concrete Boom Pump Truck - 56M Reach & High Efficiency |SANY

製品詳細

起源の場所: 中国

ブランド名: SANY

モデル番号: 56m

支払及び船積みの言葉

最小注文数量: 1セクション

パッケージの詳細: ロロ船、貨物バルク船

最良の価格を入手する

製品詳細

製品の説明

製品詳細

ハイライト:

製品の説明

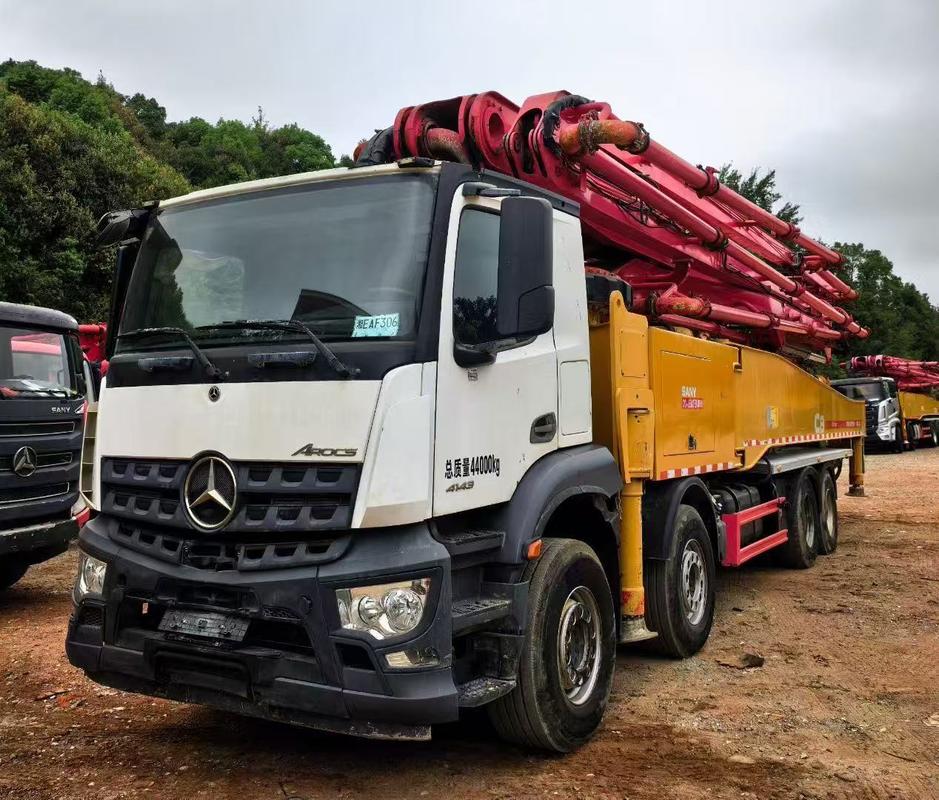

2020 Concrete Boom Pump Truck - 56M Reach & High Efficiency |SANY

Key Features

High-Efficiency Pumping System: A large-capacity hopper effectively improves pumping efficiency.
Intelligent Boom Technology: Equipped with an intelligent boom system, it supports one-touch positioning, enabling quick and accurate positioning for all pumping conditions. Furthermore, it utilizes fourth-generation composite vibration reduction technology, utilizing flexible pumping control, variable frequency vibration damping, and active vibration reduction to ensure smoother operation.
Energy Saving and Consumption Reduction: Utilizing engine power self-matching technology, it perfectly matches pumping conditions to the engine's characteristic curve, ensuring optimal fuel consumption.
Highly Reliable Hydraulic System: Based on an open-loop hydraulic system, it pioneers a cast integrated valve block, extending the life of hydraulic components. A multi-stage filtration system ensures hydraulic cleanliness reaches NaS7, significantly reducing the risk of pump and valve sticking.
Excellent Safety and Flexibility: Equipped with multiple safety features (such as overload protection and emergency stop). The boom can lay materials horizontally at ±360°, and the last boom can realize 180° reverse hook, which makes the laying range wider and more flexible to deal with complex working conditions.

Specifications

Brand name	SANY
Pump model	SYM5449THB
Pump year	2020
Boom sections	4 SECTIONS RZ FOLD
Vertical Reach	56M
Horizontal Reach	51M
Max Concrete Output	180m3/h
Concrete Press.	12 MPa
Radio Remote control	concrete pump remote controller
Radio Remote Brand	remote controller HBC
Condition	Used but stable condition
Repair standard	Basic maintenance
Truck brand	Benz chassis
Engine Type	Diesel
Dimension(LWH)	1386025504000mm
Total Weight	44000kg
Maintenance items	Hopper accessory; sheet metal;check and test all system; cleaning
